CloudRandomDensity Node
CloudRandomDensity: Generates random points based on a 2D density field in [0, 1], where the value at each location represents its density, using a fully random distribution; each point is also assigned a random value in [0, 1].
Category
Geometry/Cloud
Inputs
| Name | Type | Description |
|---|---|---|
| density | VirtualArray | Output noise amplitude envelope. |
Outputs
| Name | Type | Description |
|---|---|---|
| cloud | Cloud | Set of points (x, y) and elevations z. |

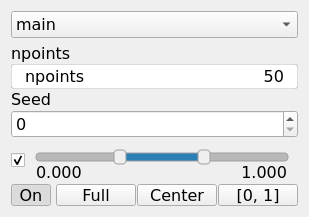

Parameters
| Name | Type | Description |
|---|---|---|
| npoints | Integer | Number of points. |
| remap | Value range | Remap the point values output to a specified range, defaulting to [0, 1]. |
| Seed | Random seed number | Random seed number. The random seed is an offset to the randomized process. A different seed will produce a new result. |

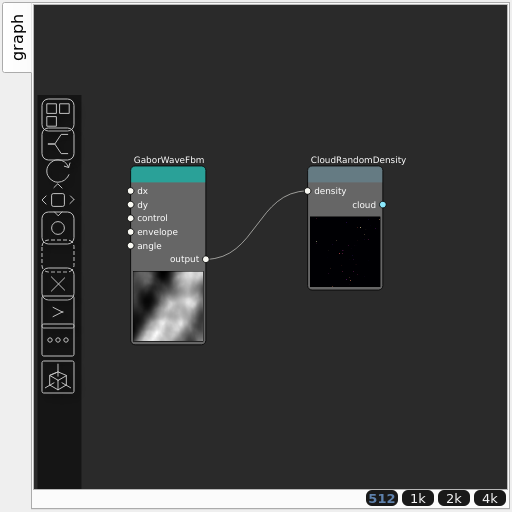

Example
Corresponding Hesiod file: CloudRandomDensity.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
