ScanMask Node
ScanMask adjusts the brightness and contrast of an input mask.
Category
Terrain Features/Mask Operations
Inputs
| Name | Type | Description |
|---|---|---|
| input | VirtualArray | Input heightmap. |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Adjusted heightmap. |
Parameters
| Name | Type | Description |
|---|---|---|
| brightness | Float | Brightness adjustment. |
| contrast | Float | Contrast adjustment. |
| remap | Bool | Remap the operator's output to a specified range, defaulting to [0, 1]. |

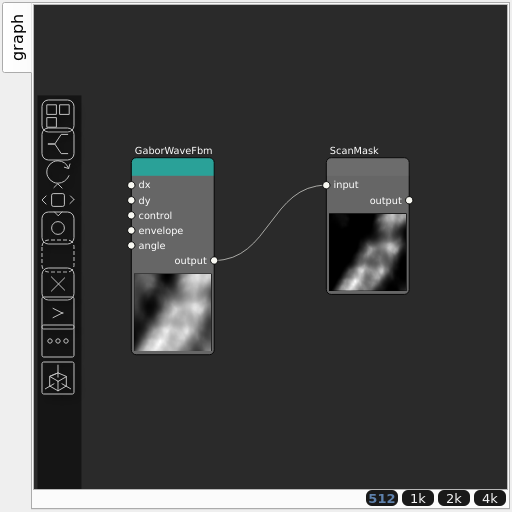

Example
Corresponding Hesiod file: ScanMask.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
