MixTextureMasked Node
Mix two textures using a mask with transparency or Poisson blending.
Category
Texture
Inputs
| Name | Type | Description |
|---|---|---|
| mask | VirtualArray | Mask controlling the blending between textures. |
| texture1 | VirtualTexture | First input texture (background). |
| texture2 | VirtualTexture | Second input texture (foreground). |
Outputs
| Name | Type | Description |
|---|---|---|
| texture | VirtualTexture | Output mixed texture. |

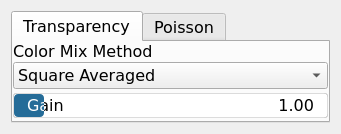

Parameters
Parameters common to all groups (Transparency, Poisson): |Name|Type|Description| | :--- | :--- | :--- | |Gain|Float|Gain factor applied to the mask.|
Transparency
| Name | Type | Description |
|---|---|---|
| Color Mix Method | Enumeration | Color mixing method for transparency blending (Linear, Square Averaged, Mixbox). |
Poisson
| Name | Type | Description |
|---|---|---|
| Iterations | Integer | Number of iterations for Poisson blending. |
| Mask Threshold | Float | Threshold value to shift the mask so that it corresponds to zero for Poisson blending. |
Example
No example yet
No example available for this node.
