MakePeriodic Node
Makes the input heightmap tileable by creating a smooth linear transition at the boundaries. This is useful for generating seamless textures or terrains that can be repeated without visible seams.
Category
Operator/Tiling
Inputs
| Name | Type | Description |
|---|---|---|
| input | VirtualArray | The input heightmap to be made tileable. |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | The output heightmap with smooth transitions at the boundaries, making it tileable. |
Parameters
| Name | Type | Description |
|---|---|---|
| overlap | Float | The ratio of overlap at the boundaries. A higher value creates a smoother transition but may reduce the usable area of the heightmap. |
| periodicity_type | Enumeration | Describes the periodicity mode applied along map axes. The domain repeats along the X axis, the Y axis, or both. |

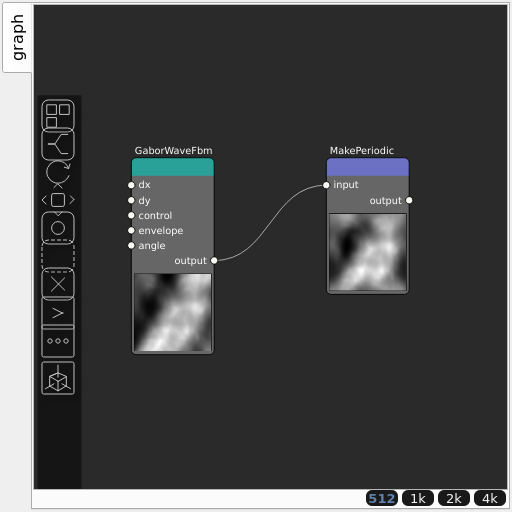

Example
Corresponding Hesiod file: MakePeriodic.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
