Smoothstep Node
Applies a smoothstep function to the input heightmap, creating a smooth transition between values.
Category
Math/Base
Inputs
| Name | Type | Description |
|---|---|---|
| input | VirtualArray | Input heightmap. |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Output heightmap with the smoothstep function applied. |
Parameters
| Name | Type | Description |
|---|---|---|
| order | Choice | The order of the smoothstep function, determining the smoothness of the transition. |

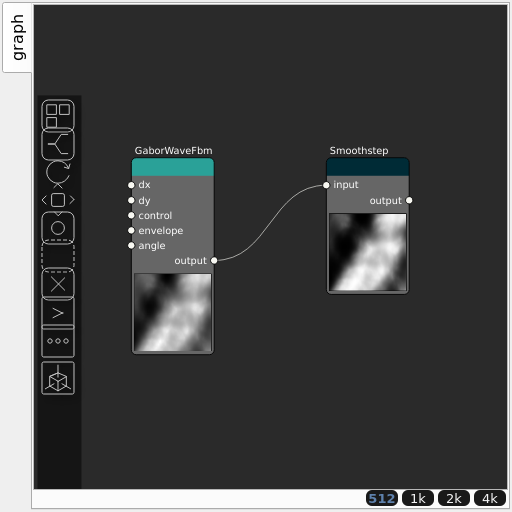

Example
Corresponding Hesiod file: Smoothstep.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
