RecurveKura Node
RecurveKura is an operator based on the Kumaraswamy distribution that can be used to adjust the amplitude levels of a dataset.
Category
Filter/Recurve
Inputs
| Name | Type | Description |
|---|---|---|
| input | VirtualArray | Input heightmap. |
| mask | VirtualArray | Mask defining the filtering intensity (expected in [0, 1]). |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Filtered heightmap. |
Parameters
| Name | Type | Description |
|---|---|---|
| a | Float | Primarily controls the rightward skewness and tail behavior of the distribution. |
| b | Float | Primarily controls the leftward skewness and tail behavior. |

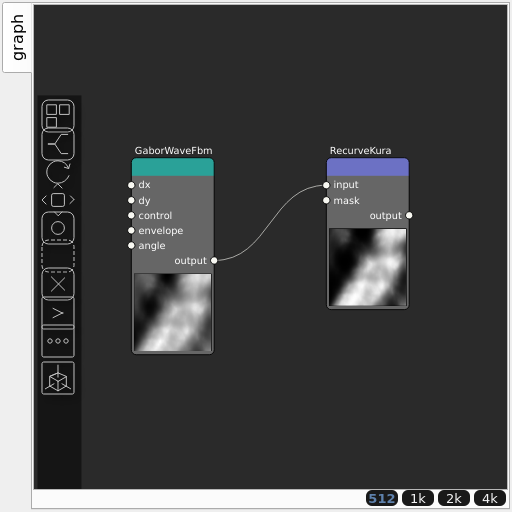

Example
Corresponding Hesiod file: RecurveKura.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
