KernelGabor Node
KernelGabor generates a Gabor kernel.
Category
Primitive/Kernel
Outputs
| Name | Type | Description |
|---|---|---|
| kernel | Array | Output kernel. |
Parameters
| Name | Type | Description |
|---|---|---|
| angle | Float | Kernel angle. Expressed in degrees. |
| kw | Float | Base spatial frequencies in the X and Y directions. The frequencies are defined with respect to the entire domain: for example, kw = 2 produces two full oscillations across the domain width (and similarly for the Y direction). |
| normalize | Bool | Normalize kernel so that the sum of the elements equals 1, preserving the overall intensity of an heightmap after convolution for instance. |
| radius | Float | Kernel radius with respect to the domain size. |

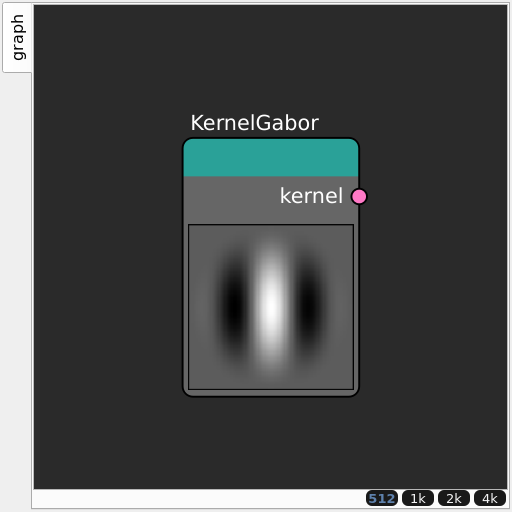

Example
Corresponding Hesiod file: KernelGabor.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
