RadialDisplacementToXy Node
RadialDisplacementToXy interprets the input array dr as a radial displacement and convert it to a pair of displacements dx and dy in cartesian coordinates.
Category
Math
Inputs
| Name | Type | Description |
|---|---|---|
| dr | VirtualArray | Radial displacement. |
Outputs
| Name | Type | Description |
|---|---|---|
| dx | VirtualArray | Displacement with respect to the domain size (x-direction). |
| dy | VirtualArray | Displacement with respect to the domain size (y-direction). |

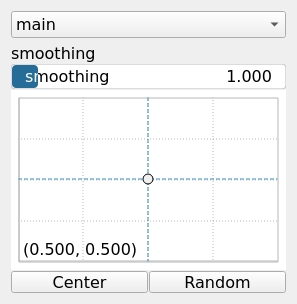

Parameters
| Name | Type | Description |
|---|---|---|
| center | Vec2Float | Reference center within the heightmap. Coordinates are in domain units; center.y is measured from the bottom of the map (y increases upward). |
| smoothing | Float | Smoothing parameter to avoid discontinuity at the origin. |

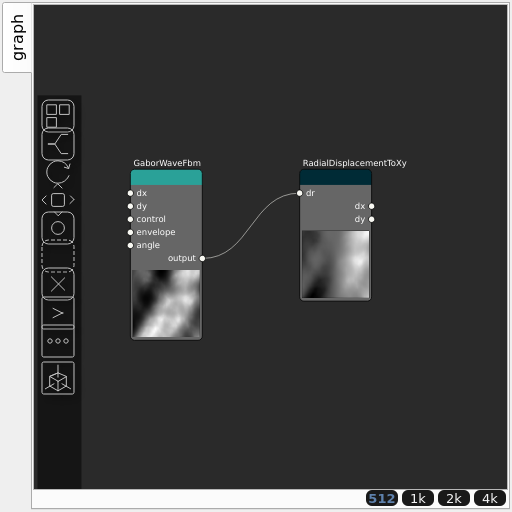

Example
Corresponding Hesiod file: RadialDisplacementToXy.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
