ColorizeBivariate Node
ColorizeBivariate generates a texture by colorizing two scalar fields using two custom color gradients and blending them according to a chosen mixing method.
Category
Texture
Inputs
| Name | Type | Description |
|---|---|---|
| input1 | VirtualArray | First data values field for color selection. |
| input2 | VirtualArray | Second data values field for color selection. |
| noise | VirtualArray | Noise for dithering (shared between input 1 and input 2). |
Outputs
| Name | Type | Description |
|---|---|---|
| texture | VirtualTexture | Output colorized texture. |

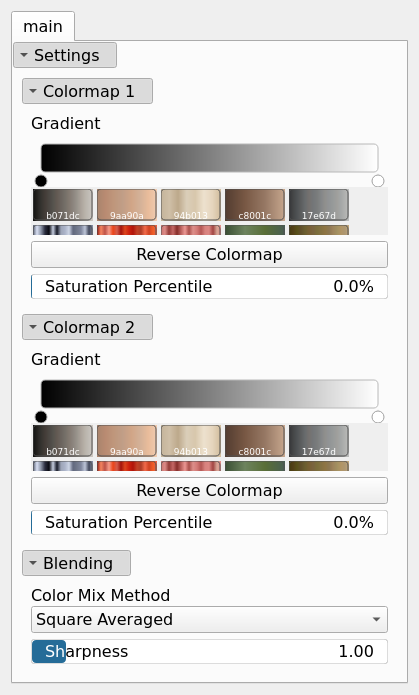

Parameters
| Name | Type | Description |
|---|---|---|
| Gradient | Color gradient | Colormap as a manually defined color gradient for input 1. |
| Gradient | Color gradient | Colormap as a manually defined color gradient for input 2. |
| Color Mix Method | Enumeration | Mixing method used to blend the colors from both colormaps. |
| Reverse Colormap | Bool | Reverse the colormap 1 range. |
| Reverse Colormap | Bool | Reverse the colormap 2 range. |
| Saturation Percentile | Float | Saturation percentile for normalization of input 1. |
| Saturation Percentile | Float | Saturation percentile for normalization of input 2. |
| Sharpness | Float | Sharpness of the transition between the two colormaps. |
Example
No example yet
No example available for this node.
