PathFractalize Node
PathFractalize fractalizes a polyline using a mid-point displacement algorithm. The procedure involves iteratively modifying the polyline's geometry to increase its complexity, mimicking fractal characteristics.
Category
Geometry/Path
Inputs
| Name | Type | Description |
|---|---|---|
| input | Path | Input path. |
Outputs
| Name | Type | Description |
|---|---|---|
| output | Path | Output path. |

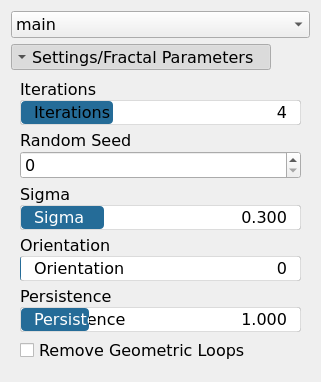

Parameters
Parameters common to all groups (Fractalize, Squiggle): |Name|Type|Description| | :--- | :--- | :--- | |Iterations|Integer|Number of mid-point displacement iterations.| |Random Seed|Random seed number|Random seed number. The random seed is an offset to the randomized process. A different seed will produce a new result.| |Orientation|Integer|Displacement orientation (0 for random inward/outward displacement, 1 to inflate the path and -1 to deflate the path).| |Remove Geometric Loops|Bool|No description|
Fractalize
| Name | Type | Description |
|---|---|---|
| Sigma | Float | Half-width of the random Gaussian displacement, normalized by the distance between points. |
| Persistence | Float | The amplitude scaling factor for subsequent noise octaves. Lower values reduce the contribution of higher octaves. |
Squiggle
| Name | Type | Description |
|---|---|---|
| Height Ratio | Float | No description |

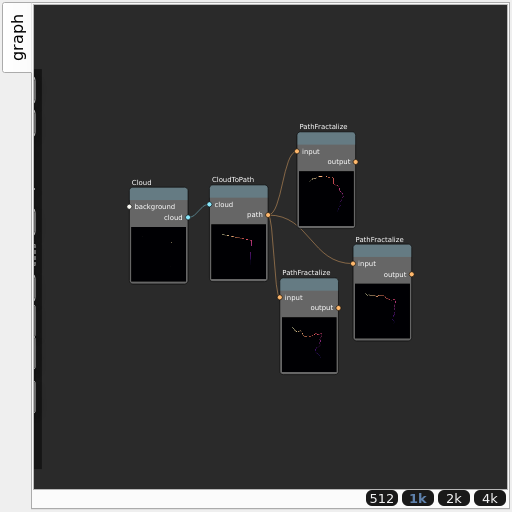

Example
Corresponding Hesiod file: PathFractalize.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
