Toggle Node
A routing utility node that outputs either input A or input B based on the value of the 'toggle' parameter. Useful for manually switching between two sources to compare their effect on the final result.
Category
Routing
Inputs
| Name | Type | Description |
|---|---|---|
| input A | VirtualArray | First heightmap input. Used when the 'toggle' parameter is true (A). |
| input B | VirtualArray | Second heightmap input. Used when the 'toggle' parameter is false (B). |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Selected input passed through: either input A or input B depending on the 'toggle' state. |
Parameters
| Name | Type | Description |
|---|---|---|
| toggle | Bool | Determines which input is routed to the output. |
Example

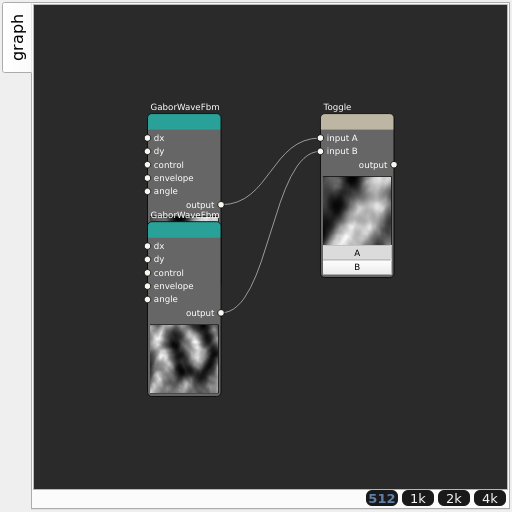

Corresponding Hesiod file: Toggle.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
