Translate Node
Translates an heightmap by a specified amount along the x and y axes. This function shifts the contents of the input array by dx and dy units along the x and y axes, respectively. It supports both periodic boundary conditions, where the array wraps around, and non-periodic conditions.
Category
Operator/Transform
Inputs
| Name | Type | Description |
|---|---|---|
| dx | VirtualArray | Displacement with respect to the domain size (x-direction). |
| dy | VirtualArray | Displacement with respect to the domain size (y-direction). |
| input | VirtualArray | Displacement with respect to the domain size (x-direction). |
Outputs
| Name | Type | Description |
|---|---|---|
| output | VirtualArray | Translate heightmap. |
Parameters
| Name | Type | Description |
|---|---|---|
| center | Vec2Float | No description Coordinates are in domain units; center.y is measured from the bottom of the map (y increases upward). |
| periodic | Bool | If set to true, the translation is periodic, meaning that elements that move out of one side of the array reappear on the opposite side. |

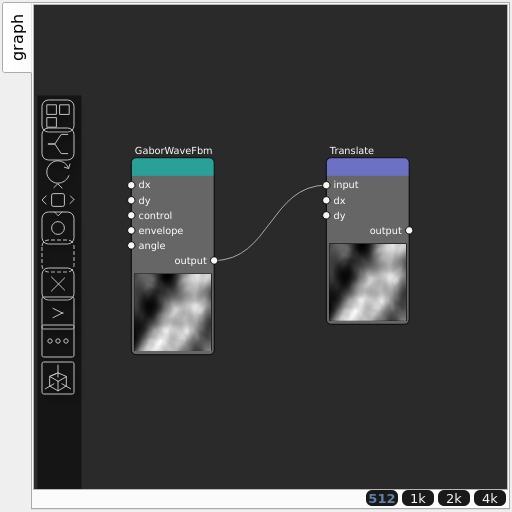

Example
Corresponding Hesiod file: Translate.hsd. Use [Ctrl+I] in the node editor to import a hsd file within your current project.
Note
Example files are kept up-to-date with the latest version of Hesiod. If you find an error, please open an issue.
